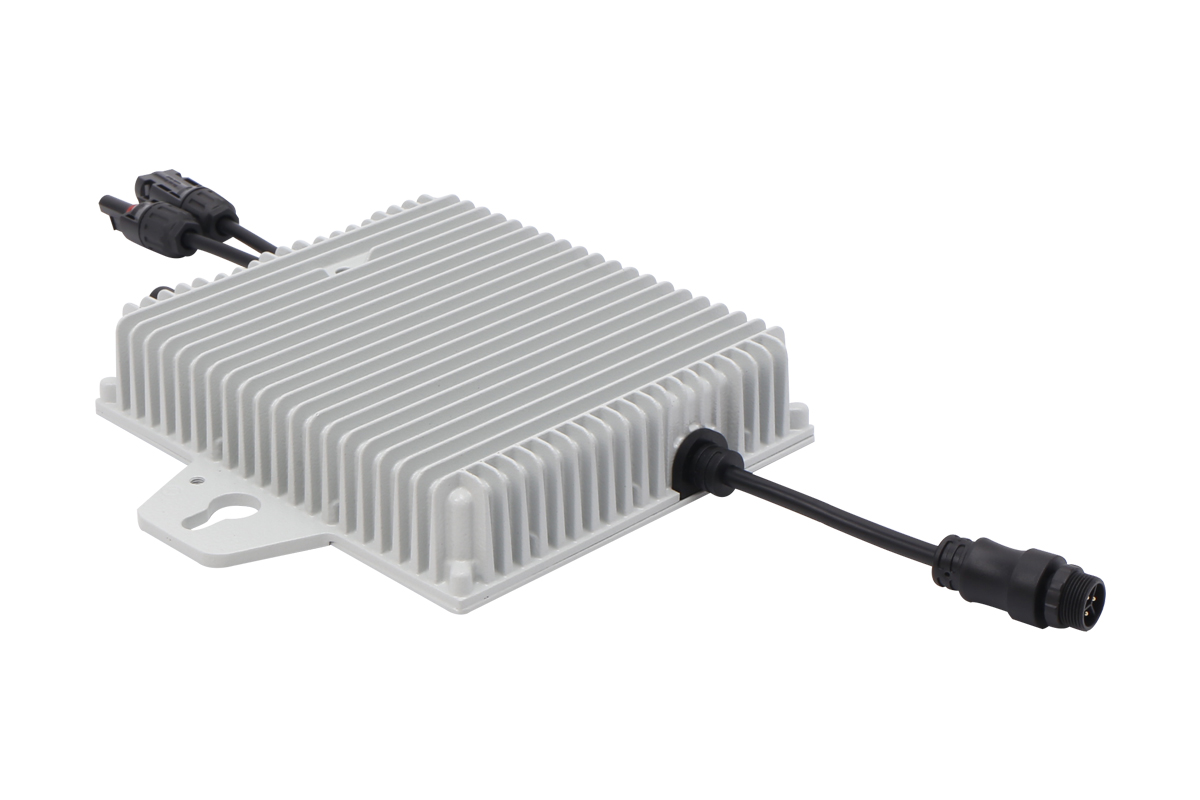

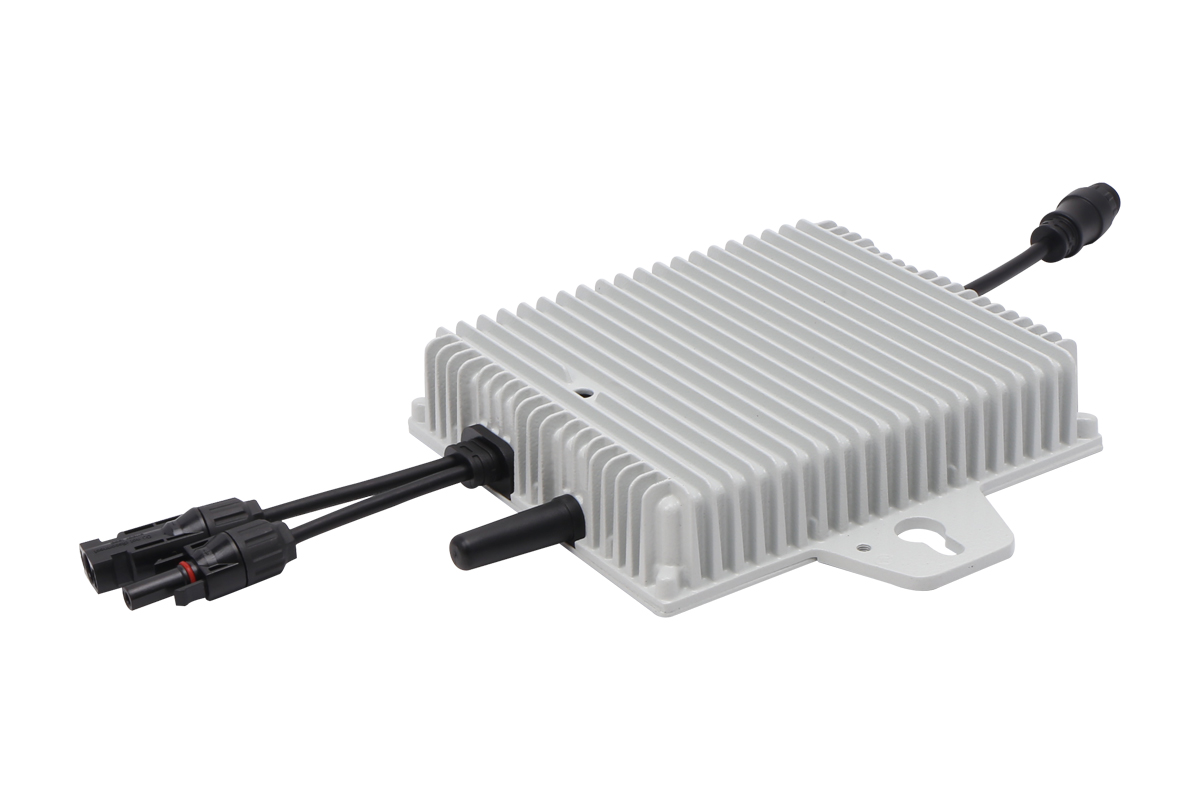

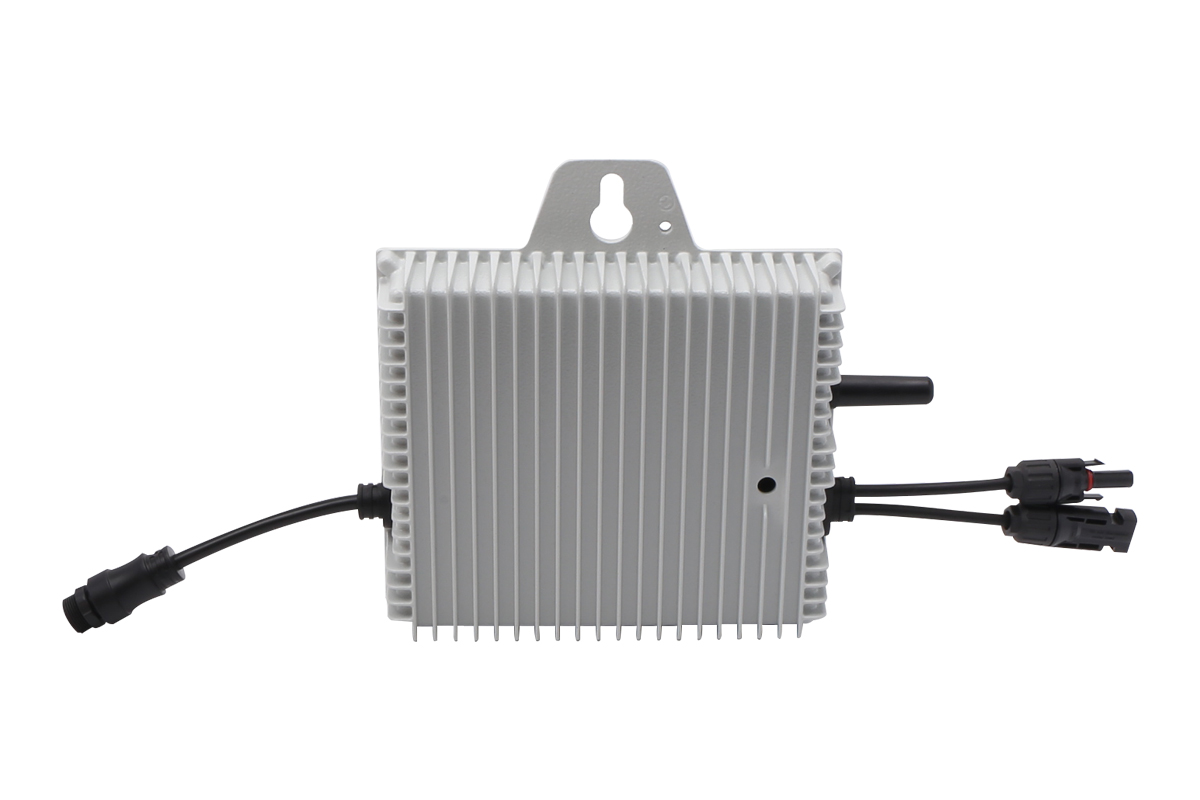

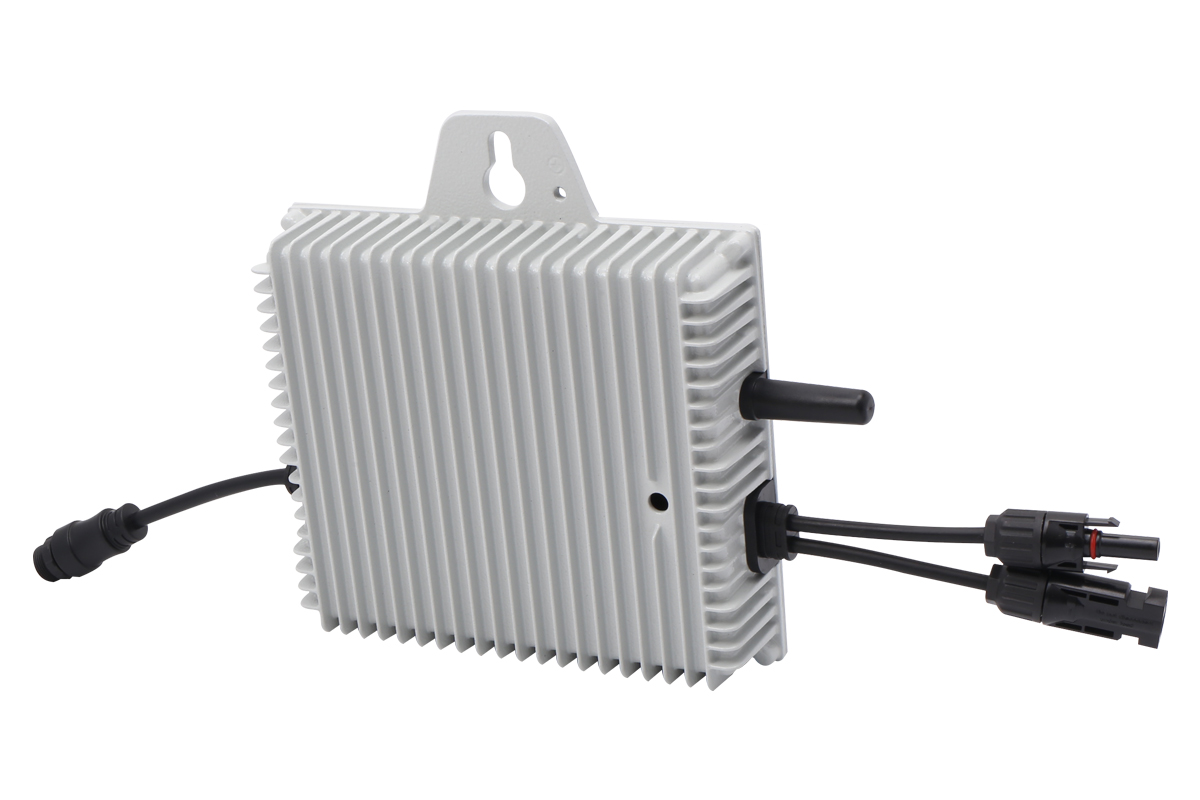

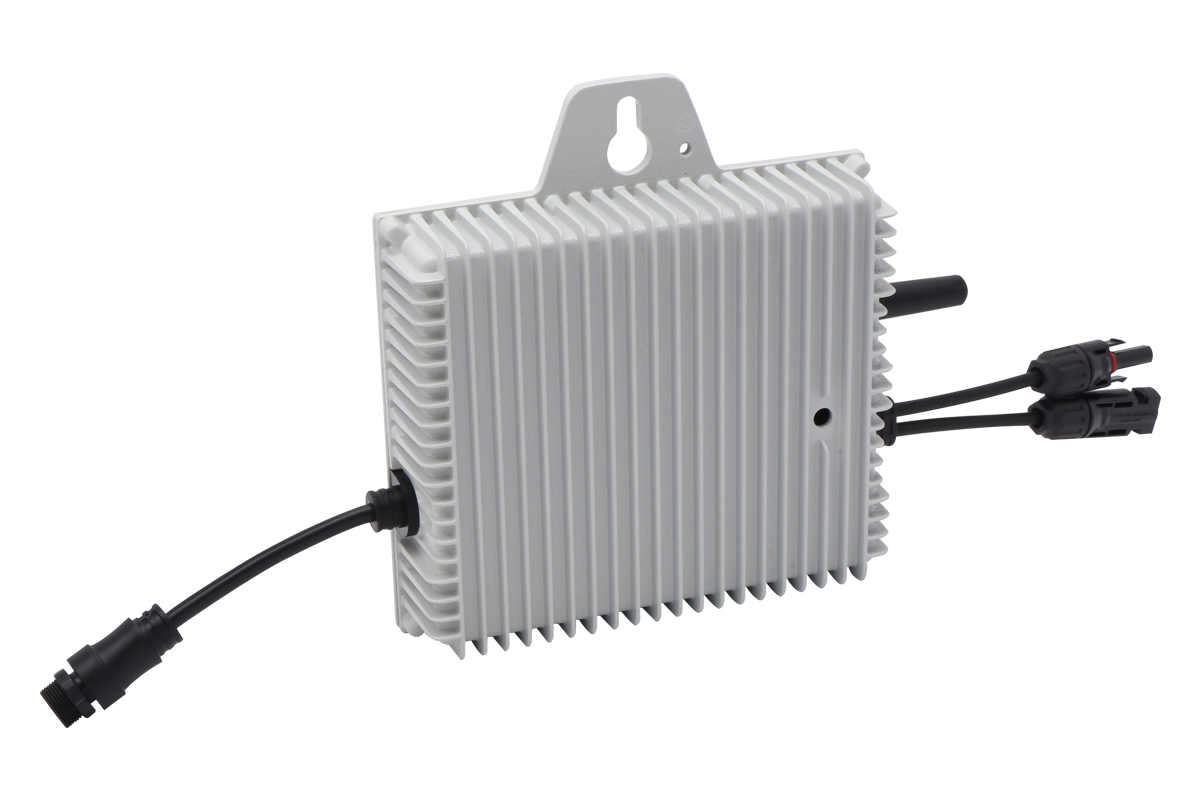

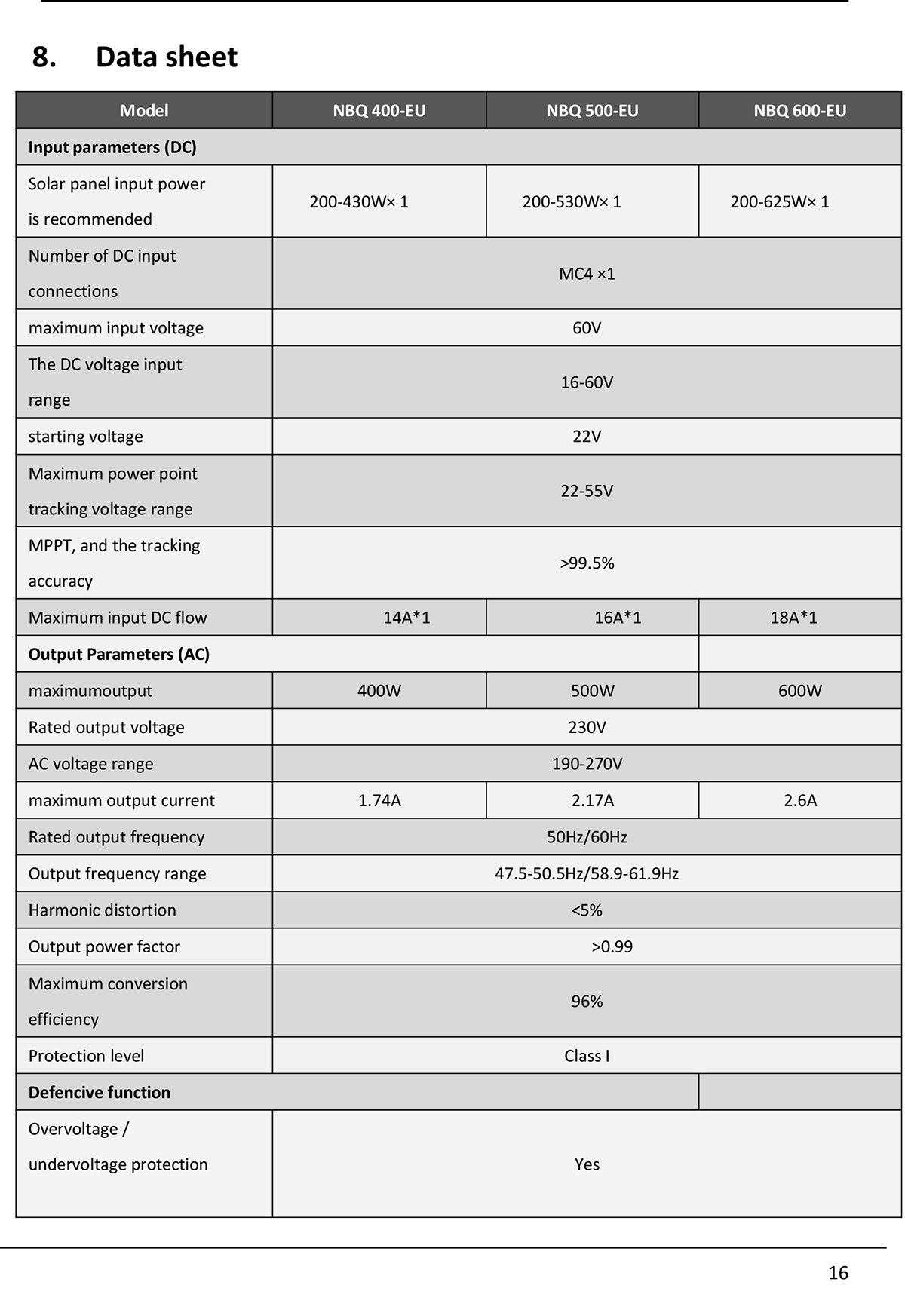

| Micro Inverter | Model:NBQ400-EU | ||
|---|---|---|---|
| Input working voltage range: 16-60VDC | Rated AC Grid Frequency:50Hz/60Hz | ||
| MPPT Tracking Range: 22-55VDC | Power factor: >0.99 | ||
| Max DC input voltage: 60VDC | Rated output current: 1.74A | ||
| Max DC input current: 14A*1 | Peak efficiency: 96% | ||
| Output peak power: 400W | Protection Class: Class l | ||
| Rated output voltage: 230VAC | Protection Degree:lP67 | ||
| Operating ambient temperature: -40°C to +65°C | |||
